SY50272AGC

交流输入降压稳压器

Part number	SY50272AGC
Pout (max) (W)	6.5
HV startup	YES
Iout (max) (A)	0.36
Vout (typ)(V)	18V
Breakdown voltage (V)	650
Ron (typ) (mΩ)	9.2
Switching frequency (min)(kHz)	35.5
Switching frequency (max)(kHz)	39
Operation mode	CCM/DCM
No load loss (mW)	<50
Features	Multi-off-time control
Package	DIP8
Operating temperature range(°C)	-40 to 125
Functional safety category

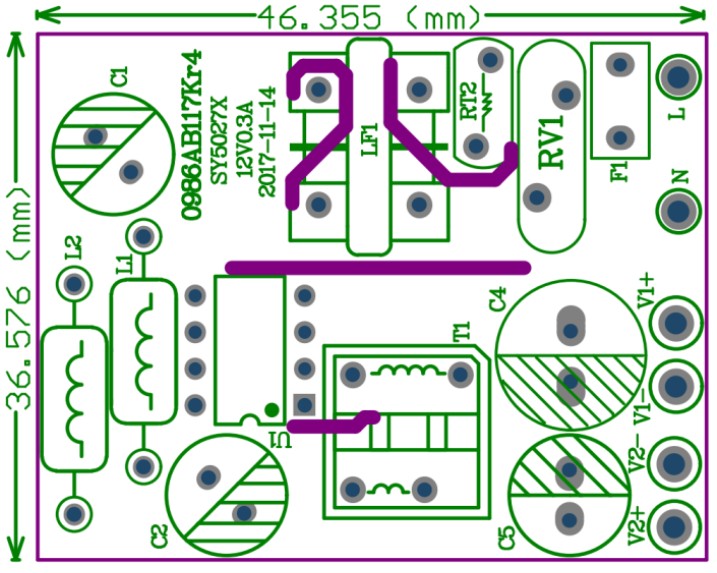

EVB_SY50272AGC

EVB_SY50272AGC评估板用于评估90~264V输入，300mA输出电流，17.6~18.4V输出电压的交流输入降压稳压器
