SQ24092ZDEC

可编程限流低损耗配电开关

Part number	SQ24092ZDEC
Vin (min) (V)	2.5
Vin (max) (V)	5.5
Vabs cont. (max) (V)	7
Iout (max) (A)	2
Protection mode	OCP, OTP
Over current response	Current limiting
Current limit (A)	Adjustable
Fault response	Auto-recovery
Ron (typ) (mΩ)	65
Certification recognition
Iq (typ) (uA)	45
Enable logic	High
Soft start	Fixed
Features	Output discharge，Reverse blocking,OCP alert
Package	DFN2×2-6
Operating temperature range(°C)	-40 to 125
Functional safety category

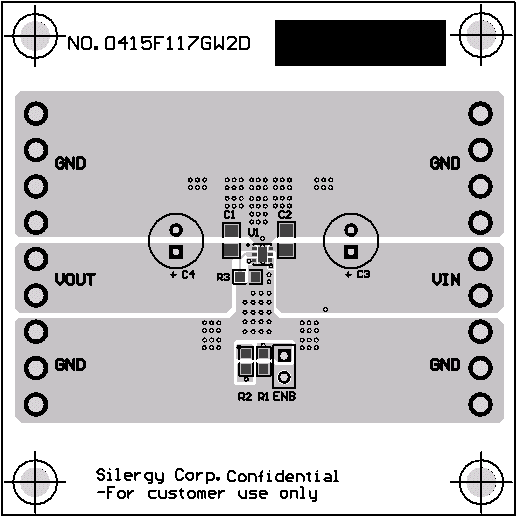

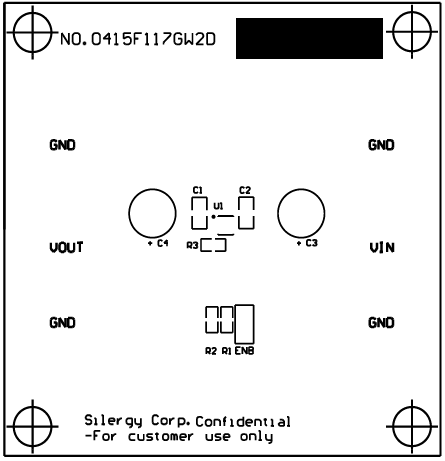

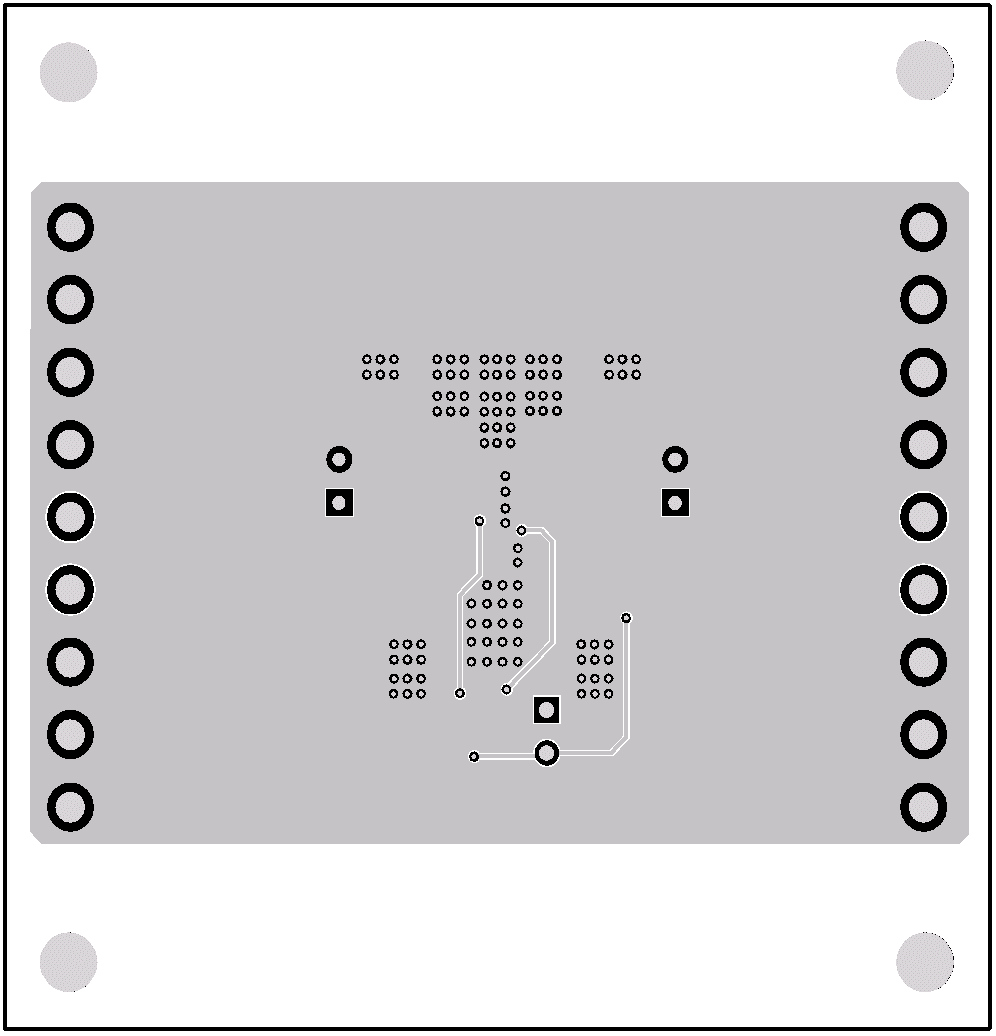

EVB_SQ24092ZDEC

EVB_SQ24092ZDEC评估板用于评估输入电压2.5~5.5V，2A可编程限流阈值的低损耗配电开关SQ24092ZDEC。
