| Part number | SY20732FCC |
|---|---|
| Vin (max) (V) | 6 |
| Vin (min) (V) | 1.4 |
| Iout (max) (A) | 2 |
| Output type | Adjustable |
| Vout (max) (V) | 5.2 |
| Vout (min) (V) | 0.5 |
| Iq (typ) (uA) | 800 |
| PSRR at 100kHz (dB) | 30 |
| Accuracy (±%) | 2 |
| Features | Enable,Fixed soft-start,Auto-discharge,Over current protection,Thermal shutdown,Reverse current blocking |
| Operating temperature range(°C) | -40 to 125 |
| Package | SO8E |
| Functional safety category |
The SY20732FCC is a high-performance positive voltage regulator designed for applications which require very low input voltage and very low dropout voltage at up to 2A output. It operates with a VIN as low as 1.4V, with output voltage programmable as low as 0.5V. The SY20732FCC features ultra-low dropout, ideal for applications where VOUT is very close to VIN. Additionally, it has an enable pin to further reduce power dissipation while shutdown. The device provides excellent regulation over variations in line, load, and temperature.
The SY20732FCC has an adjustable output which can be set by two external resistors. The SY20732FCC is available in the SO8E (Exposed Die Pad) package.

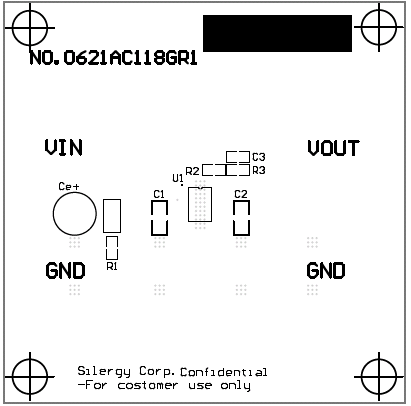

Photo of evaluation board

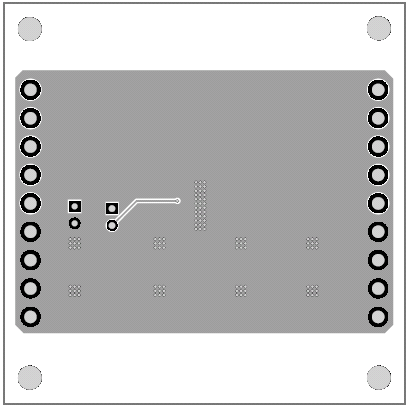

Photo of evaluation board

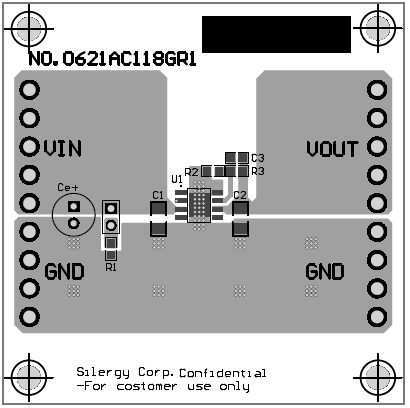

Photo of evaluation board
The EVB_SY20732FCC is intended for evaluating Low Input/Low dropout, 2A LDO with Enable SY20732FCC.
