| Part number | SY2A27357DAAA |
|---|---|
| Vin (max) (V) | 36 |
| Vin (min) (V) | 4 |
| Iout (max) (A) | 0.15 |
| Output type | Fixed |
| Vout (max) (V) | 5 |
| Vout (min) (V) | 5 |
| Iq (typ) (uA) | 15 |
| PSRR at 100kHz (dB) | 35 |
| Accuracy (±%) | 2 |
| Features | Fixed soft-start,Over current protection,Output short to ground protection (hiccup mode),Thermal shutdown |
| Operating temperature range(°C) | -40 to 125 |
| Package | SOT23-5 |
| Functional safety category | Functional safety capable |
The SY2A27357D is an automotive grade, 150mA high current capacity linear regulator. It fixed the output voltage at 5V, which features ultra-low ground current and low drop out voltage. The device offers protection features includes over current limit, output short protection and over temperature protection.
The SY2A27357D is available in a compact SOT23-5 package.

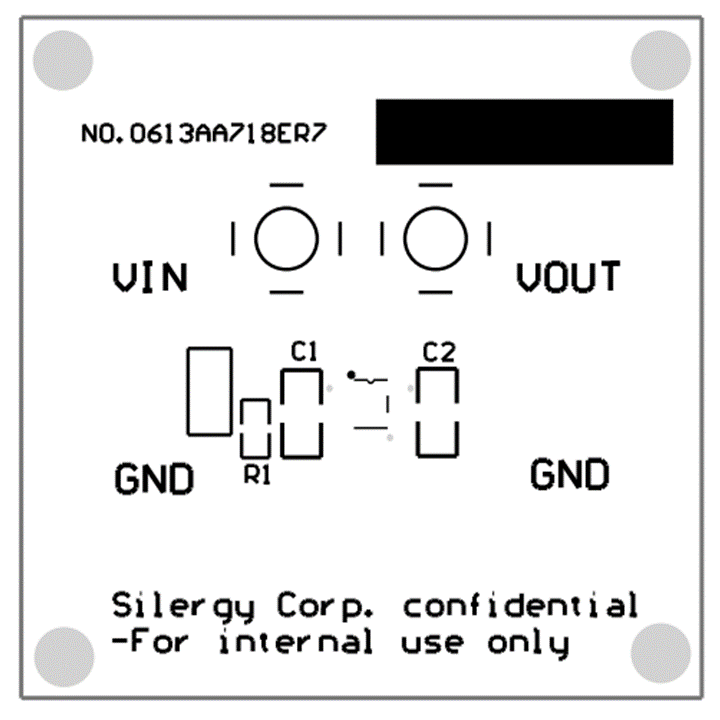

Photo of evaluation board

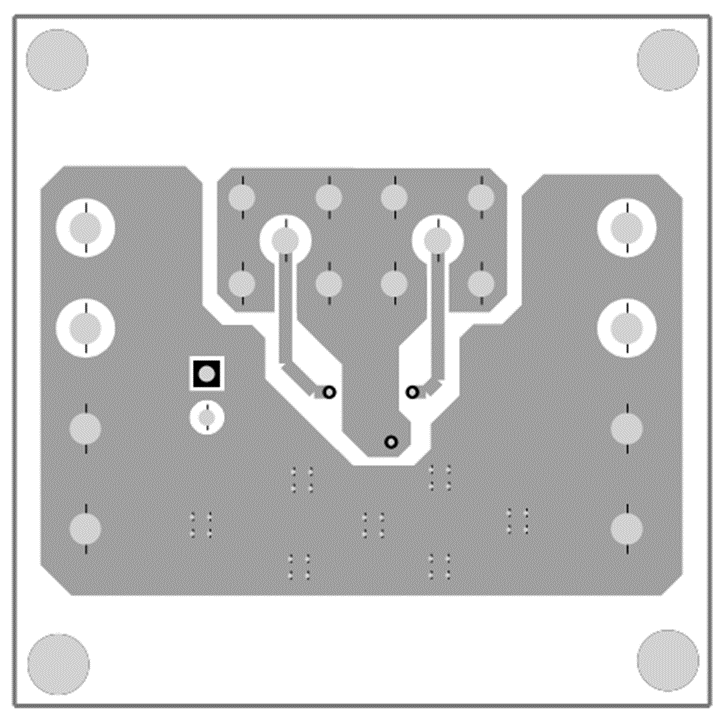

Photo of evaluation board
Photo of evaluation board
The EVB_SY2A27357DAAA is intended for evaluating the 4V~36V input, 150mA LDO SY2A27357DAAA.
