Low Loss Power Distribution Switch with Programmable Current limit
![]()
- Parameters
- Features
- Description
| Part number | SY86201EABT |
|---|
| Channel(#) | 1 |
|---|
| Vin (min) (V) | 2.5 |
|---|
| Vin (max) (V) | 5.5 |
|---|
| Iout (max) (A) | 2 |
|---|
| Iq (typ) (uA) | 45 |
|---|
| Protection mode | Auto-recovery OCP,Auto-recovery OTP |
|---|
| Current limit (A) | Adjustable |
|---|
| Ron (typ) (mΩ) | 65 |
|---|
| Enable logic | High |
|---|
| Output discharge | YES |
|---|
| Certification recognition | UL2367,IEC62368 |
|---|
| Features | Reverse blocking, OCP alert |
|---|
| Package | SOT23-6 |
|---|
| Operating temperature range(°C) | -40 to 125 |
|---|
| Functional safety category | |
|---|
- Input Voltage: 2.5V to 5.5V
- Extremely Low Power Path Resistance: 65mΩ(Typ.)
- Adjustable Current Limit up to 2A
- Reverse Blocking (No Body Diode)
- Fast Reverse Recovery
- Fault Flag (OCB) Output for Over Current and Fault Conditions
- During Shutdown, OUT Can Be Forced Higher than IN
- Built-In Soft-Start
- MSL1
- RoHS Compliant and Halogen Free
- Compact Package Minimizes Board Space: SOT23-6
The SY86201E is an ultra-low RDS(ON) power distribution switch with current limit to protect the power source from over current and short circuit conditions. It incorporates overtemperature protection and a reverse blocking function.
Evaluation Board

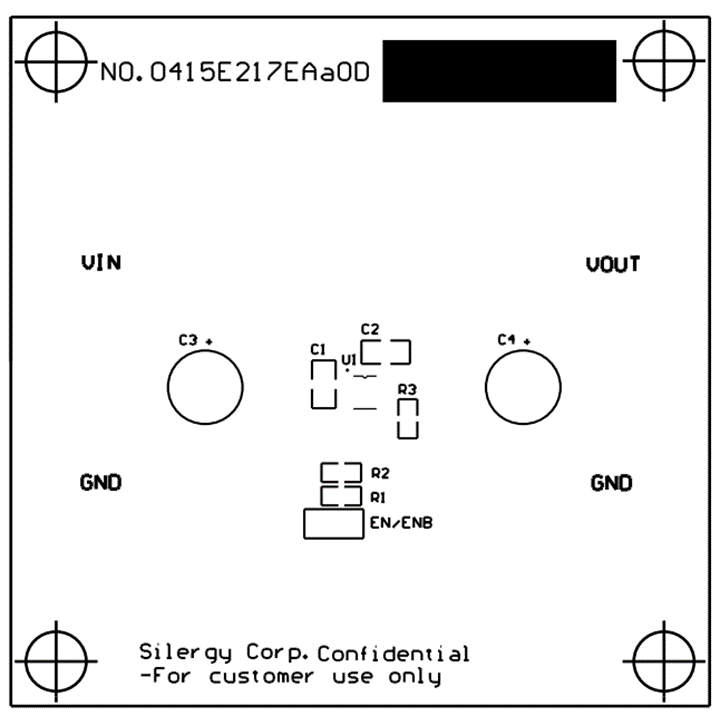

Photo of evaluation board

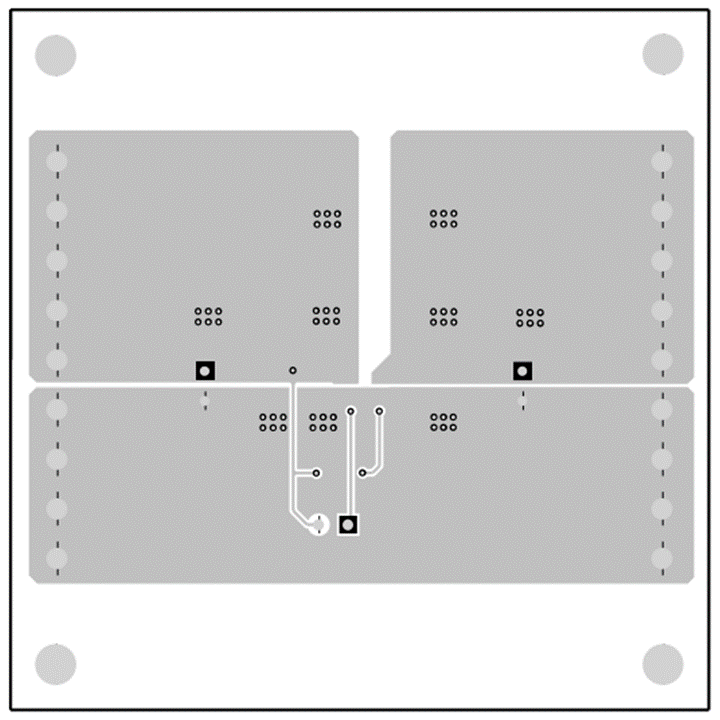

Photo of evaluation board

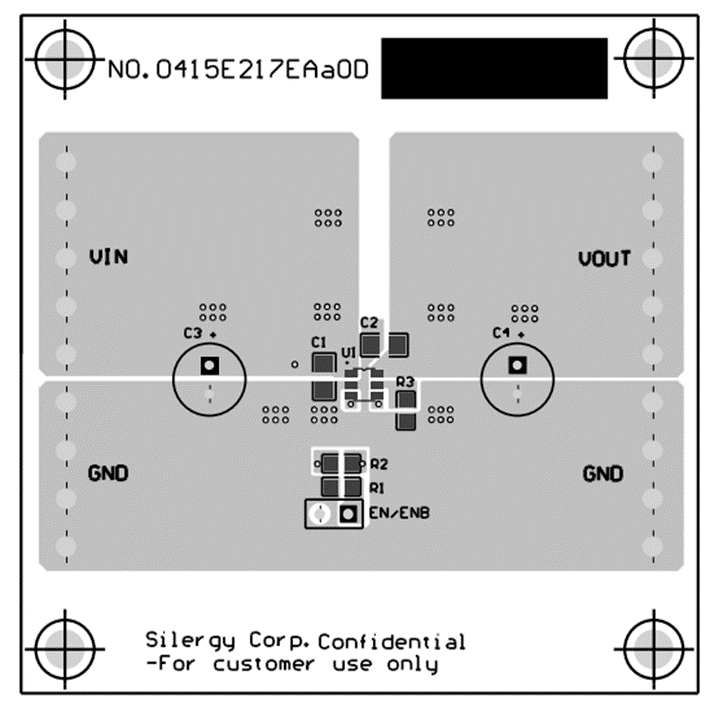

Photo of evaluation board
The EVB_SY86201EABT is intended for evaluating 2.5V to 5.5V Input, Low Loss Power Distribution Switch with Programmable Current limit SY86201EABT.
