SY2A27317AUYS (SA21305AUYS)
1350mA High Accuracy Current Limit Low Dropout Regulator
![]()
- Parameters
- Features
- Description
| Part number | SY2A27317AUYS |
|---|
| Vin (max) (V) | 3.3 |
|---|
| Vin (min) (V) | 1.65 |
|---|
| Iout (max) (A) | 1.35 |
|---|
| Output type | Adjustable |
|---|
| Vout (max) (V) | 3.3 |
|---|
| Vout (min) (V) | 0.6 |
|---|
| Iq (typ) (uA) | 160 |
|---|
| PSRR at 100kHz (dB) | 23 |
|---|
| Accuracy (±%) | 2 |
|---|
| Features | Enable,Fixed soft-start,Auto-discharge,Over current protection,Output short to ground protection (latch mode),Thermal shutdown |
|---|
| Operating temperature range(°C) | -40 to 105 |
|---|
| Package | CSP2.4×2.4-36 |
|---|
| Functional safety category | |
|---|
- Input Voltage Range: 1.65V to 3.3V
- Output Current up to 1350mA
- PSRR at 1kHz : 55dB(Typ)
- Adjustable Output FB Voltage Accuracy : ±1% @TA=25˚C
- Drop Output Voltage : Max=0.4V
- Packages CSP 2.4mm×2.4mm -36
- RoHS Compliant and Halogen Free
- AEC Q100 Grade 2
- -40˚C to +105˚C Ambient Temperature Range
The SY2A27317A is a 1350mA high current capacity linear regulator that provides high output accuracy, fast line and load transient response. The device offers protection features including over current limit, output short protection and over temperature operation.
The SY2A27317A is available in compact with CSP2.4mm×2.4mm-36 package.
Evaluation Board

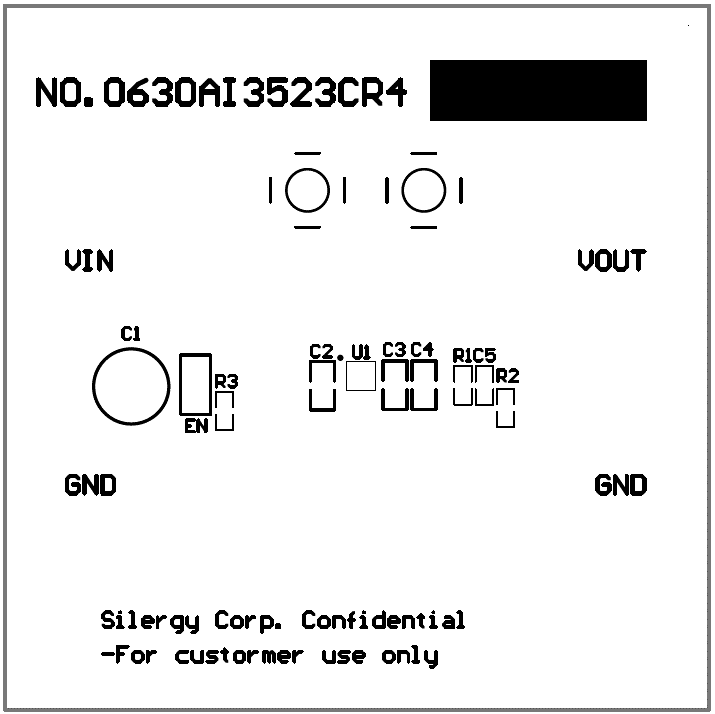

Photo of evaluation board

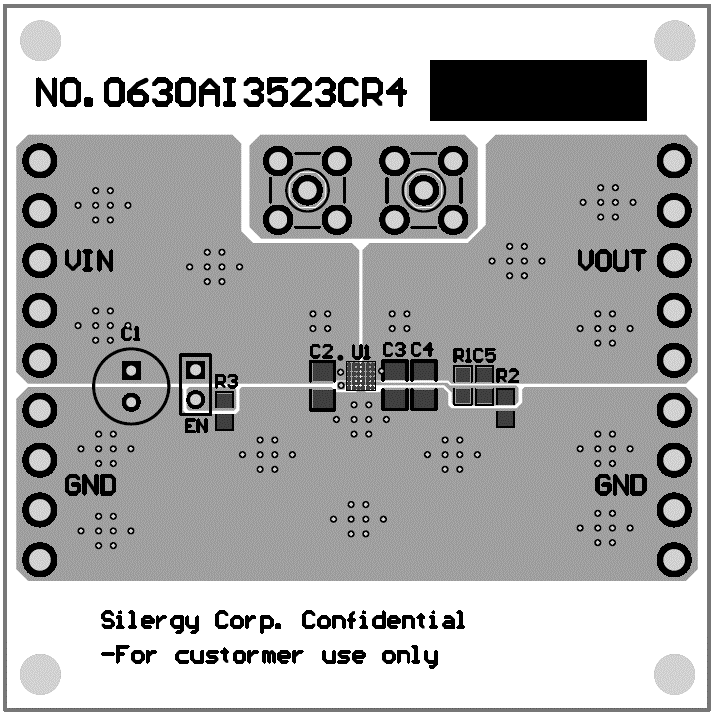

Photo of evaluation board

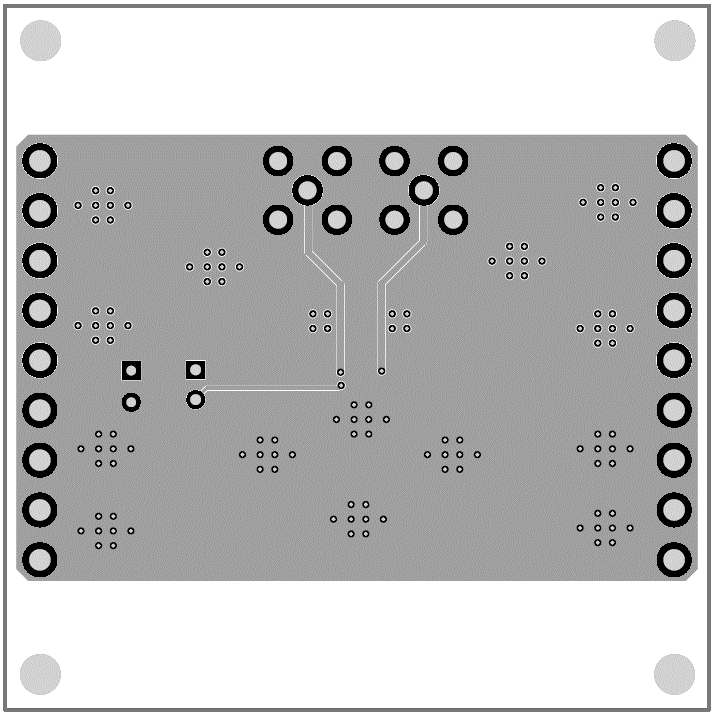

Photo of evaluation board
The EVB_SY2A27317AUYS is intended for evaluating 1.65V to 3.3V input, 1350mA high accuracy current limit low dropout regulator SY2A27317AUYS.
