5.5V, 2A Low Loss Power Distribution Switch
- Parameters
- Features
- Description
| Part number | SY20812AAAC |
|---|
| Channel(#) | 1 |
|---|
| Vin (min) (V) | 2.4 |
|---|
| Vin (max) (V) | 5.5 |
|---|
| Iout (max) (A) | 2 |
|---|
| Iq (typ) (uA) | 38 |
|---|
| Protection mode | Auto-recovery OCP,Auto-recovery OTP |
|---|
| Current limit (A) | Adjustable |
|---|
| Ron (typ) (mΩ) | 63 |
|---|
| Enable logic | High |
|---|
| Output discharge | YES |
|---|
| Certification recognition | |
|---|
| Features | Reverse blocking, |
|---|
| Package | SOT23-5 |
|---|
| Operating temperature range(°C) | -40 to 125 |
|---|
| Functional safety category | |
|---|
- Input Voltage: 2.4V to 5.5V
- 2A Load Current Capability
- Programmable Current Limit
- Enable Polarity: Active High
- Over Temperature Protection
- Reverse Blocking (No Body Diode)
- OUT Can be Forced Higher Than IN at Shutdown
- Output Discharge Function
- SY20812: Auto Output Discharge Function
- SY20812A: No Output Discharge Function
- Compact SOT23-5 Package Minimizes the Board Space
Evaluation Board

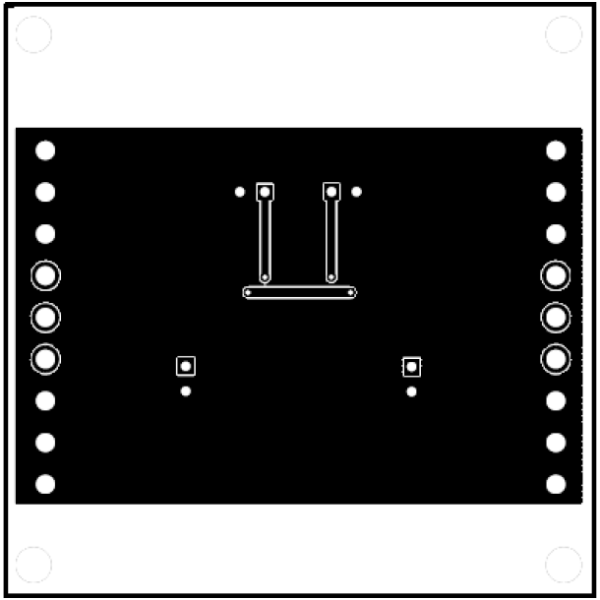

Photo of evaluation board

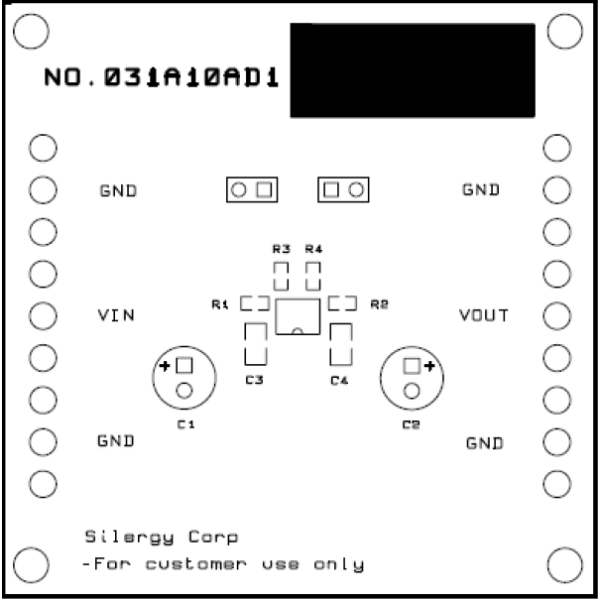

Photo of evaluation board

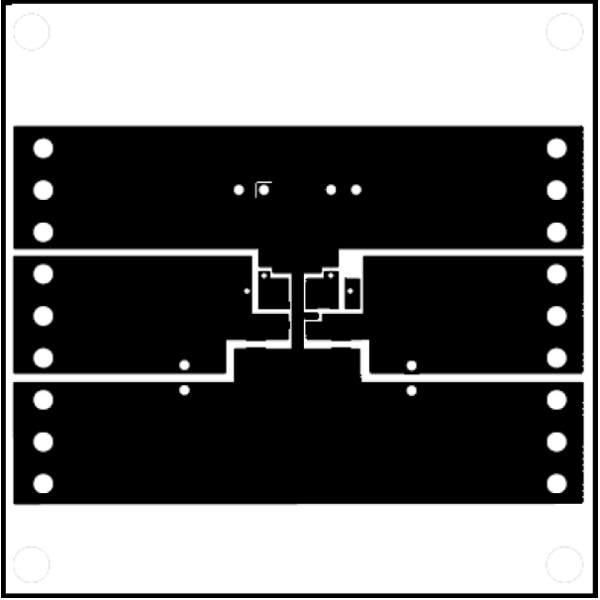

Photo of evaluation board
The EVB_SY20812AAAC is used to evaluate 5.5V, 2A Low Loss Power Distribution Switch.
