SY20311AIC (SY8831AIC)

Production
High Efficiency 1.5MHz, Dual 1A Synchronous Step Down Regulator
Datasheet
SY20311AIC High Efficiency 1.5MHz, Dual 1A Synchronous Step Down Regulator Datasheet
    Part numberSY20311AIC
    Channel(#)2
    Vin (min) (V)2.5
    Vin (max) (V)5.5
    Switching frequency (min)(kHz)1500
    Switching frequency (max)(kHz)1500
    Vout (min) (V)0.6
    Vout (max) (V)5
    Iout (max) (A)1
    Vout2 (min)(V)0.6
    Vout2 (max )(V)5
    Iout2 (max)(A)1
    Vref accuracy (±%)2
    Vout accuracy(±%)
    Control modeClock+Ipeak
    Duty cycle (max)(%)100
    Operation modeAuto PFM
    Iq (typ) (uA)55
    FeaturesInterleave operation, Output discharge
    PackageTSOT23-8
    Operating temperature range(°C)-40 to 125
    Functional safety category



    • 2.5V to 5.5V Input Voltage
    • 1.5MHz Switching Frequency
    • 180° Out of Phase Operation
    • Output Current: 1A per Channel
    • Quiescent Current: Typical 55µA for both Channels
    • Low RDS(ON) for Internal Switches (PFET/NFET): 260mΩ/180mΩ
    • Internal Soft-start
    • 100% Dropout Operation
    • RoHS Compliant and Halogen Free
    • Compact Package: TSOT23-8



    The SY20311 is a dual output, high efficiency 1.5MHz synchronous step down DC/DC regulator capable of delivering up to 1A output current for each output channel. The SY20311 operates over a wide input voltage range from 2.5V to 5.5V and integrates main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss.

    Evaluation Board

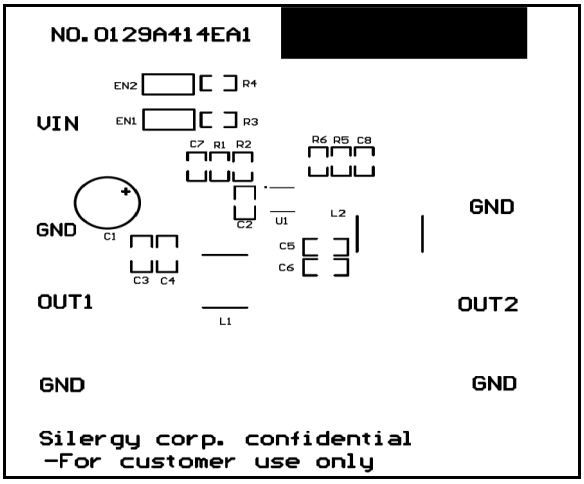

    • 20311-1

      Photo of evaluation board

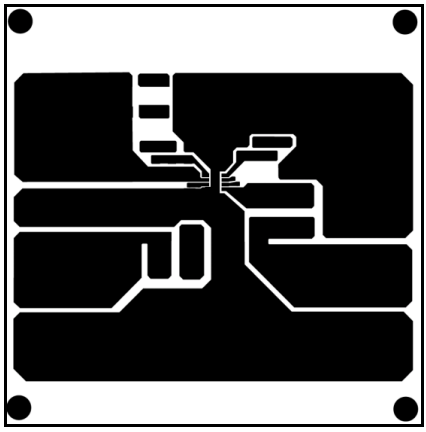

    • 20311-2

      Photo of evaluation board

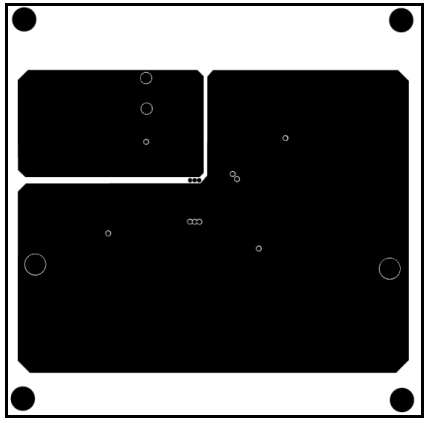

    • 20311-3

      Photo of evaluation board

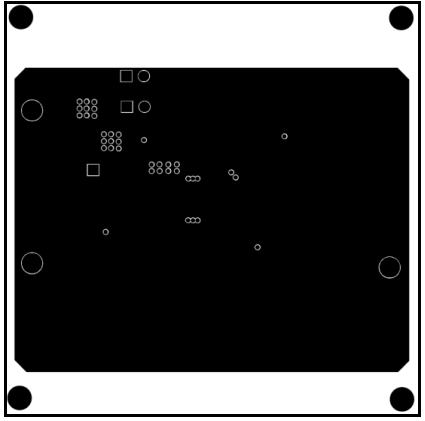

    • 20311-4

      Photo of evaluation board

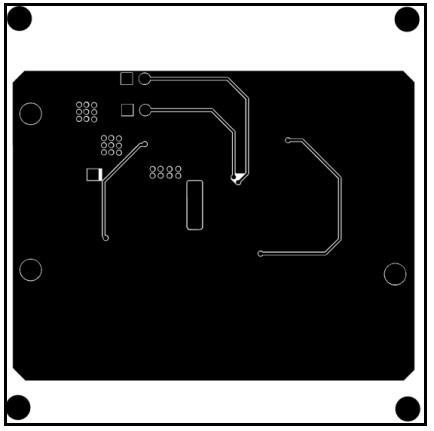

    • 20311-5

      Photo of evaluation board

    EVB_SY20311AIC

    The EVB_SY20311AIC is intended for evaluating 1.5MHz, Dual 1.0A, synchronous Buck regulator. It features Enable controls.
