High Efficiency 5.5V, 6A, 2.4MHz I2C Programmable, Synchronous Step Down Regulator
![]()
- Parameters
- Features
- Description
| Part number | SY20257KPKC |
|---|
| Channel(#) | 1 |
|---|
| Vin (min) (V) | 2.6 |
|---|
| Vin (max) (V) | 5.5 |
|---|
| Switching frequency (min)(kHz) | 2400 |
|---|
| Switching frequency (max)(kHz) | 2400 |
|---|
| Vout (min) (V) | 0.7125 |
|---|
| Vout (max) (V) | 1.5 |
|---|
| Iout (max) (A) | 6 |
|---|
| Vout2 (min)(V) | |
|---|
| Vout2 (max )(V) | |
|---|
| Iout2 (max)(A) | |
|---|
| Vref accuracy (±%) | |
|---|
| Vout accuracy(±%) | 1.5 |
|---|
| Control mode | COT+Ripple |
|---|
| Duty cycle (max)(%) | 65 |
|---|
| Operation mode | Auto PFM |
|---|
| Iq (typ) (uA) | 65 |
|---|
| Features | Output discharge, I2C |
|---|
| Package | CSP1.56×1.96-20 |
|---|
| Operating temperature range(°C) | -40 to 125 |
|---|
| Functional safety category | |
|---|
- Input Voltage Range: 2.6V to 5.5V
- 2.4 MHz Switching Frequency Minimizes the External Components
- Typical 75µA Quiescent Current
- Low RDS(ON) for Internal Switches (PFET/NFET): 28mΩ/17mΩ
- Programmable Output Voltage: 0.7125V to 1.5V in 12.5mV Steps
- 6A Continuous Output Current Capability
- Capable for 0.25µH Inductor and 22µF Ceramic Capacitor
- Hic-cup Mode Protection for Hard Short Condition
- RoHS Compliant and Halogen Free
- Compact Package: CSP1.56x1.96-20
SY20257K is a high efficiency 2.4MHz synchronous step down DC/DC regulator capable of delivering up to 6A output currents. It can operate over a wide input voltage range from 2.6V to 5.5V and integrates main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss. The output voltage can be programmed from 0.7125V to 1.5V through I2C interface.
SY20257K is in a space saving, low profile CSP1.56x1.96-20 package.
Evaluation Board

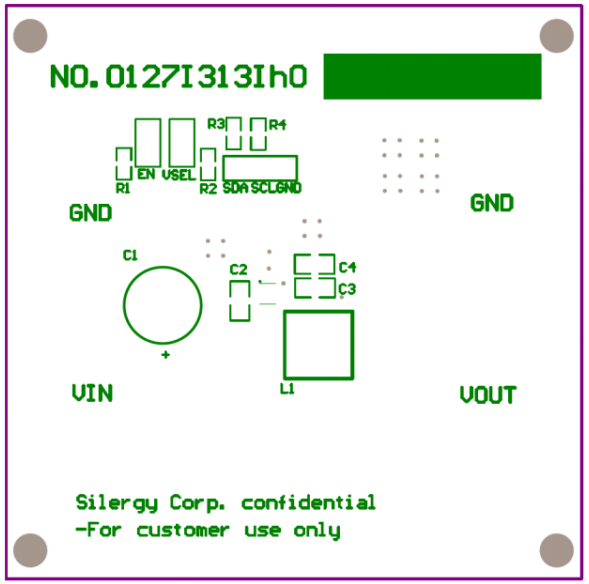

Photo of evaluation board

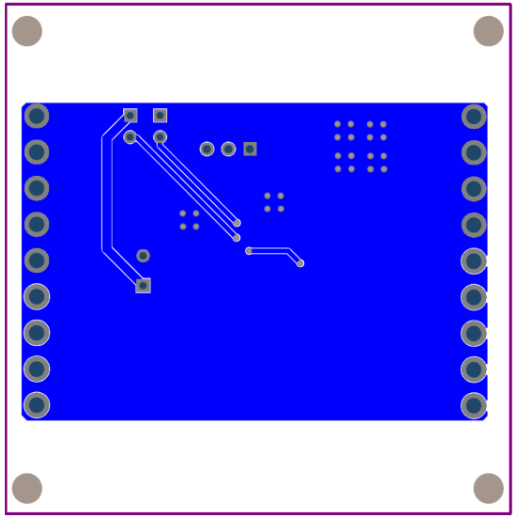

Photo of evaluation board

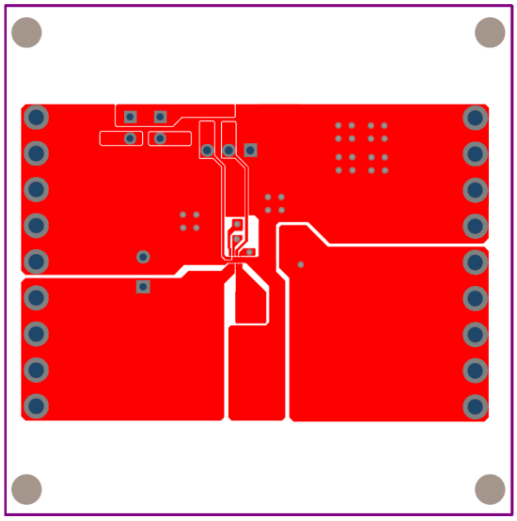

Photo of evaluation board
The EVB_SY20257KPKC is to facilitate the evaluation of SY20257KPKC, 5.5V, 6A, 2.4MHz synchronous Buck regulator.
