| Part number | SY20117EDFC |
|---|---|
| Channel(#) | 1 |
| Vin (min) (V) | 2.5 |
| Vin (max) (V) | 5.5 |
| Switching frequency (min)(kHz) | 1000 |
| Switching frequency (max)(kHz) | 1000 |
| Vout (min) (V) | 0.6 |
| Vout (max) (V) | 5 |
| Iout (max) (A) | 3 |
| Vout2 (min)(V) | |
| Vout2 (max )(V) | |
| Iout2 (max)(A) | |
| Vref accuracy (±%) | 1.5 |
| Vout accuracy(±%) | |
| Control mode | COT OFF+Ipeak |
| Duty cycle (max)(%) | 100 |
| Operation mode | FCCM |
| Iq (typ) (uA) | |
| Features | Power good,Output discharge |
| Package | DFN2×2-8 |
| Operating temperature range(°C) | -40 to 125 |
| Functional safety category |
The SY20117E is a high efficiency 1MHz synchronous step down DC/DC regulator, which is capable of delivering up to 3A output current. It can operate over a wide input voltage range from 2.5V to 5.5V and integrate main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss.
The low output voltage ripple, the small external inductor and the capacitor sizes are achieved with 1MHz switching frequency.

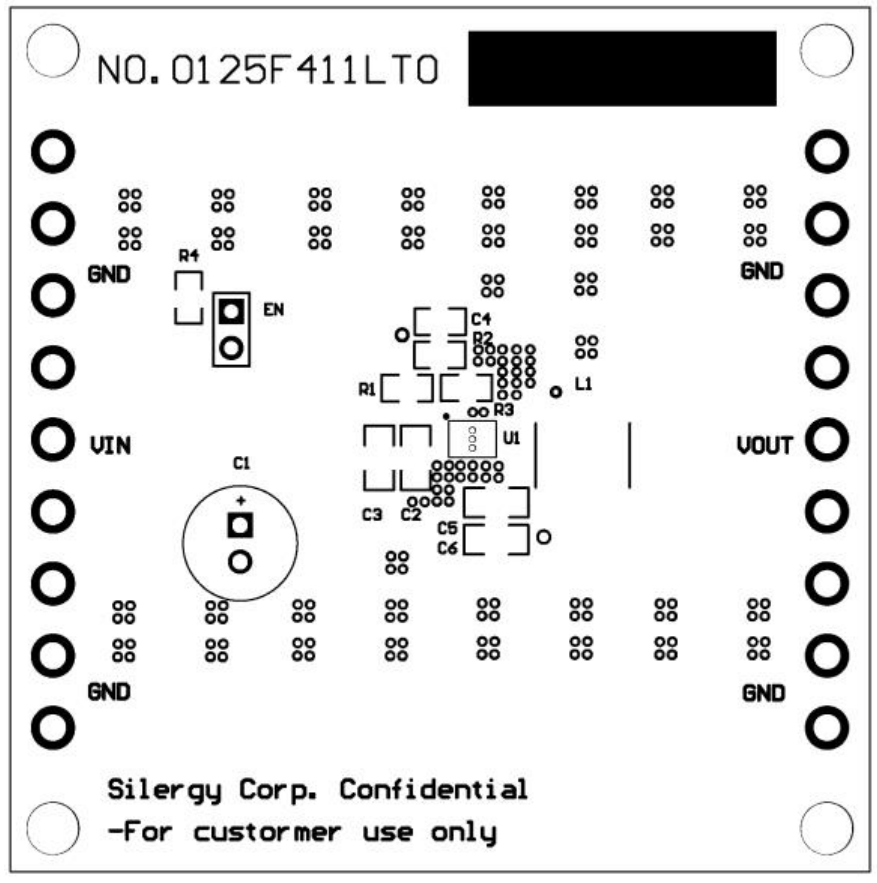

Photo of evaluation board

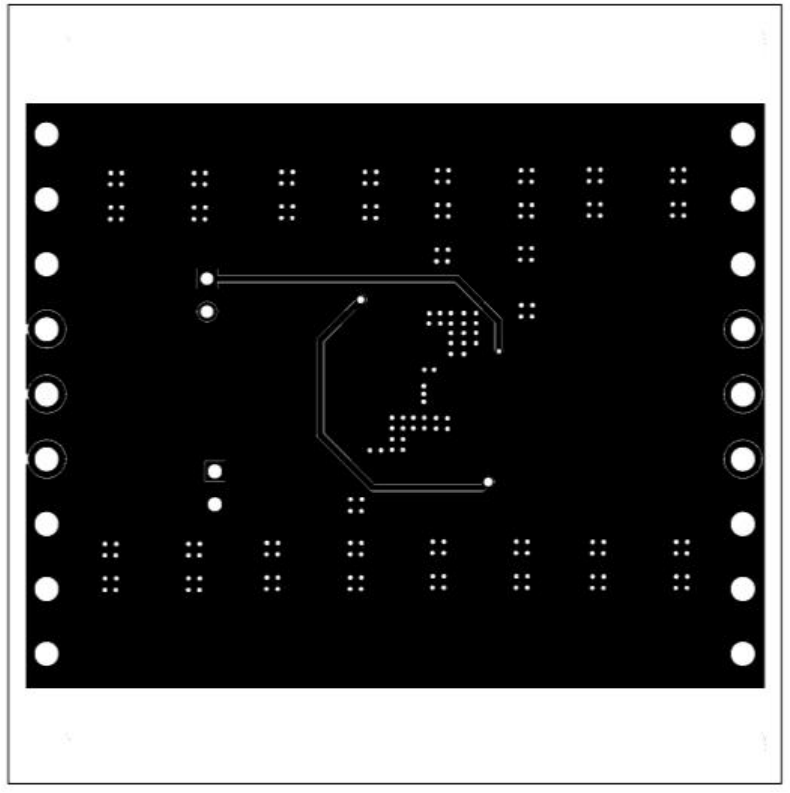

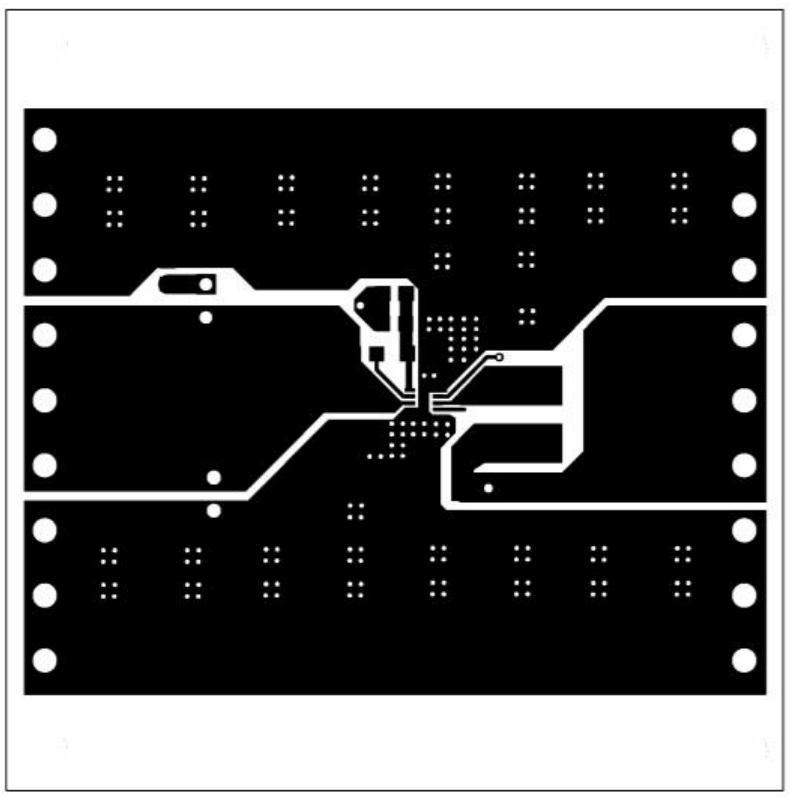

Photo of evaluation board
Photo of evaluation board
The EVB_SY20117EDFC is intended for evaluating 1MHz, 3A synchronous Buck regulator. It features enable control.
